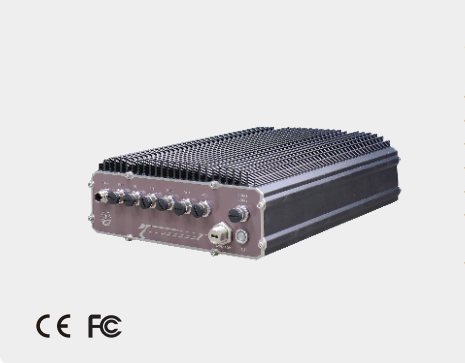

Affordable IP65 waterproof Intel® 13th/12th-Gen Core™ computer with 4x M12 PoE+ and USB3.2 Type-C ports supporting DP display
Affordable IP65 waterproof Intel® 13th/12th-Gen Core™ computer with 4x M12 PoE+ and USB3.2 Type-C ports supporting DP display
| System Core | ||
| Processor | Supporting Intel®13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel®Core™ i9-13900E/ i9-13900TE - Intel®Core™ i7-13700E/ i7-13700TE - Intel®Core™ i5-13500E/ i5-13400E/i5-13500TE - Intel®Core™ i3-13100E/ i3-13100TE |
Supporting Intel®12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel®Core™ i9-12900E/ i9-12900TE - Intel®Core™ i7-12700E/ i7-12700TE - Intel®Core™ i5-12500E/ i5-12500TE - Intel®Core™ i3-12100E/ i3-12100TE - Intel®Pentium®G7400E/ G7400TE - Intel®Celeron®G6900E/ G6900TE |
| Chipset | Intel®H610E platform controller hub | |
| Graphics | Integrated Intel®UHD Graphics 770 (32EU) / 730 (24EU) | |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) | |
| TPM | Supports dTPM 2.0 | |
| I/O Interface | ||
| Ethernet | 1x Gigabit Ethernet port by Intel®I219-LM (M12 X-coded) 3x 2.5G Ethernet ports by Intel® I226-IT (M12 X-coded) 1 个采用英特尔 ® I210-IT 芯片的千兆以太网口 |
|
| PoE+ | Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE/GbE ports 100 W total power budget |
|
| USB 3.2 | 1x USB 3.2 Gen1 (5 Gbps) port in type-C waterproof connector 1x USB 3.2 Gen1 (rear side |
|
| USB 2.0 | 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
|
| Video Port (Integrated Graphics) |
1x DisplayPort in type-C waterproof connector, supporting 4096 x 2304 resolution 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution (rear side) |
|
| Serial Port | 1x isolated RS-232 port (COM1) and 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin connector |
|
| Storage Interface | |
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Internal Expansion Bus | |
| Mini PCI Express | 2x full-size mini PCI Express socket (PCIe + USB2) |
| M.2 B key | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
| Power Supply | |
| DC Input | 8V to 48V DC input with built-in ignition power control |
| Mechanical | |
| Dimension | 225mm (W) x 286mm (D) x 90mm (H) |
| Weight | 5.25KG |
| Mounting | Wall-mounting |
| Environmental | |
| Operating Temperature | Operating Temperature with 35W CPU -25°C ~ 70°Cwith 65W CPU -25°C ~ 70°C (configured as 35W TDP mode) -25°C ~ 50°C (configured as 65W TDP mode) |
| Storage Temperature |
-40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
